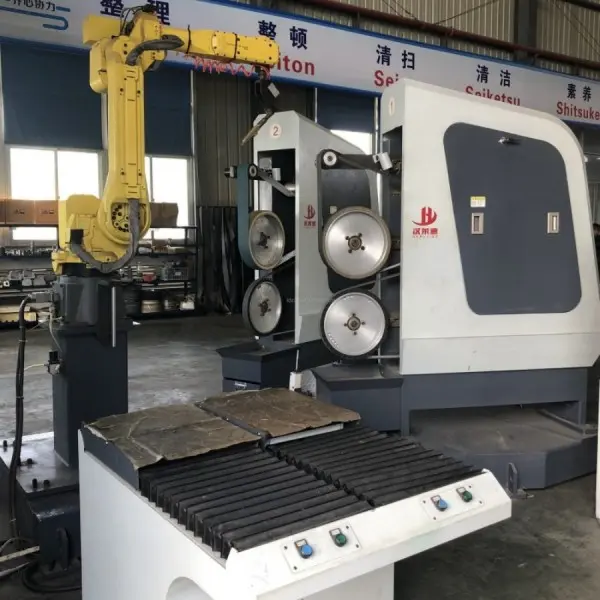

Robotic Cell Grinding And Polishing Machine With Special whell ( 8 belts)

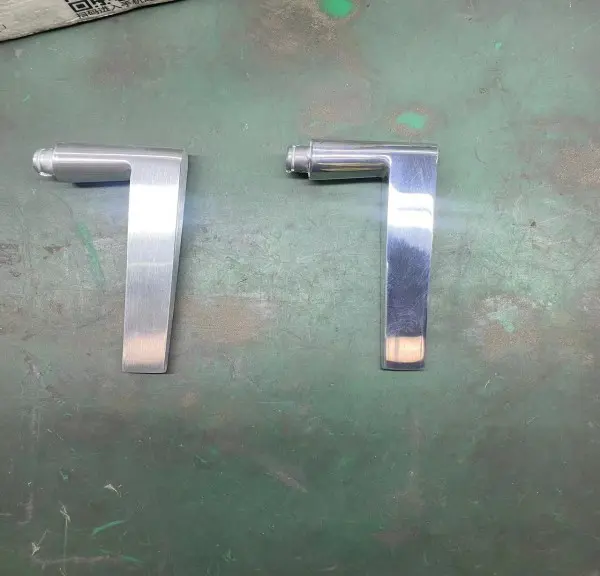

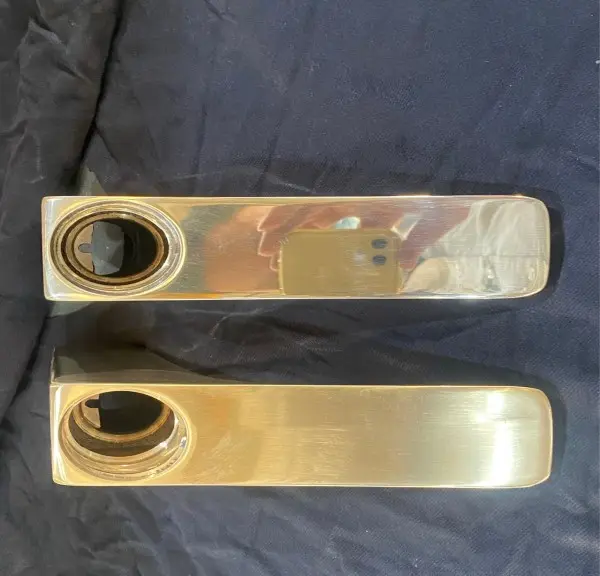

FINISHED SAMPLES
PRODUCT INTRODUCTION
● Discharge Tray (customized according to the sample)
● Inlcued full enclosed dust cover and control cabinet,charging system collected on one base with robotic.Adopting soundproof and fireproof material to eliminate dust pollutio.It can be save area and easy for install , And avoid need to adjusted the program accuracy frequently case by the ground is uneven and loading system was not on same based with main machine

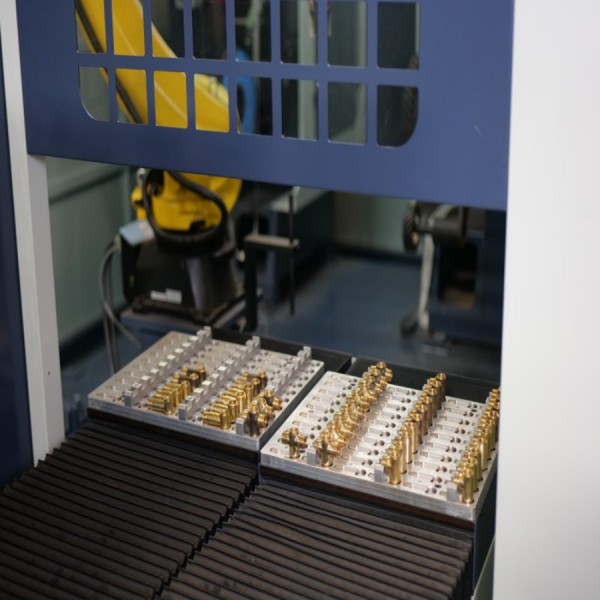

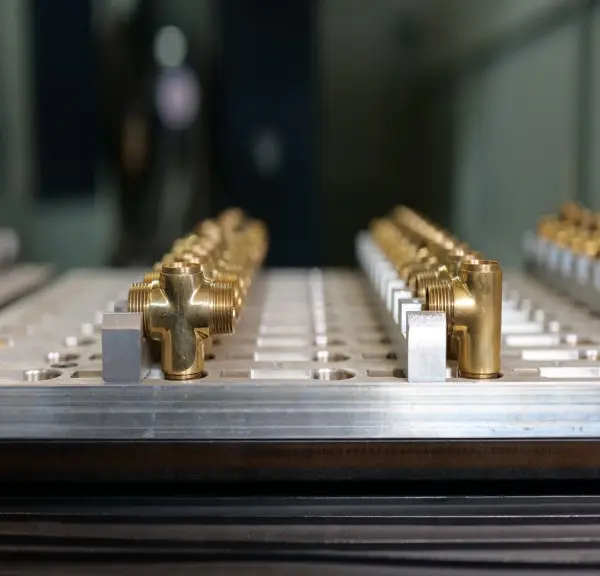

● Charging Table
APPLICATIONS
1. Faucets
2. Automobile spare parts
3. Locks and door handles,Zamak Handle,Door Hinges,Aluminum handles;
4. Automotive components: bumpers, supports, bars, wheel rims.
Machine Layout
TECHNICAL PARAMETERS
Robot Cell (ABB) |
IRB 4600/60 |
Sand Belt Machine (Double Layer) |
1421*1625*2385mm |
Double-layers feeding table |
Charging tray size 650*1000 mm |
Fixture |
|
Machine Power |
20.5KW |
Machine base |
|
Voltage |
380V |
Sand Belt specification |
3300 to 3700 mm |
Max. Speed of grinding |
29M/S |
Three-phase induction motor |
3KW-4P（1440r/min） |
Air Pressure |
0.4~0.7Mpa |
Machine size |
2400*4100*3000mm |
Total Weight |
4000KG |
Warranty and After-Sales Service
Code |
Items |
Details |
Remarks |
1 |
Machine warranty |
12 months |
|
2 |
Service response time |
Within 24 hours |
|
3 |
Installation and Commissioning Fees at End User Site |
- Within 10 days included - Over 10 days: USD 200 per day and per person plus travel costs and accommodation - Translator cost will be paid by end user, additional travel costs, meals, accommodation |
Notes
1. Random attached 1set fixture, buffs, and polishing wax.
2. Payment terms: 50% TT deposit after contract is signed; 50% TT payment before delivery.
3. Delivery time: 90 days after contract is confirmed.
